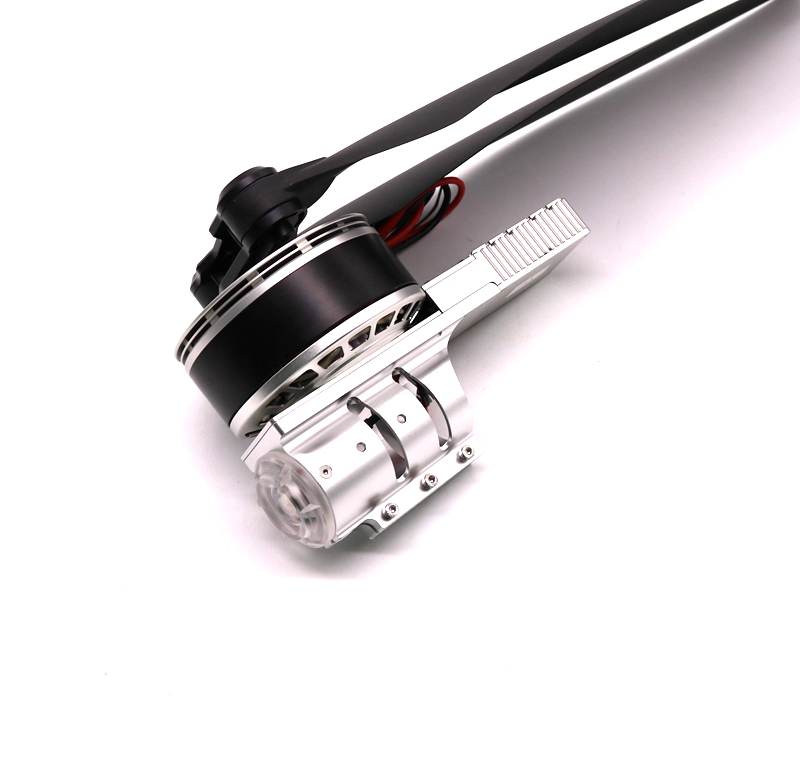

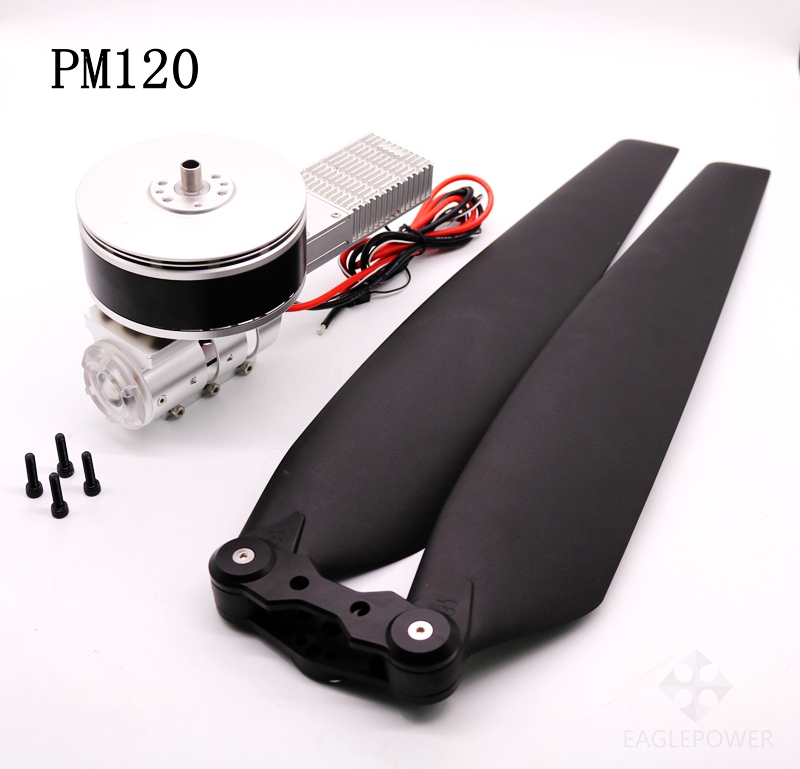

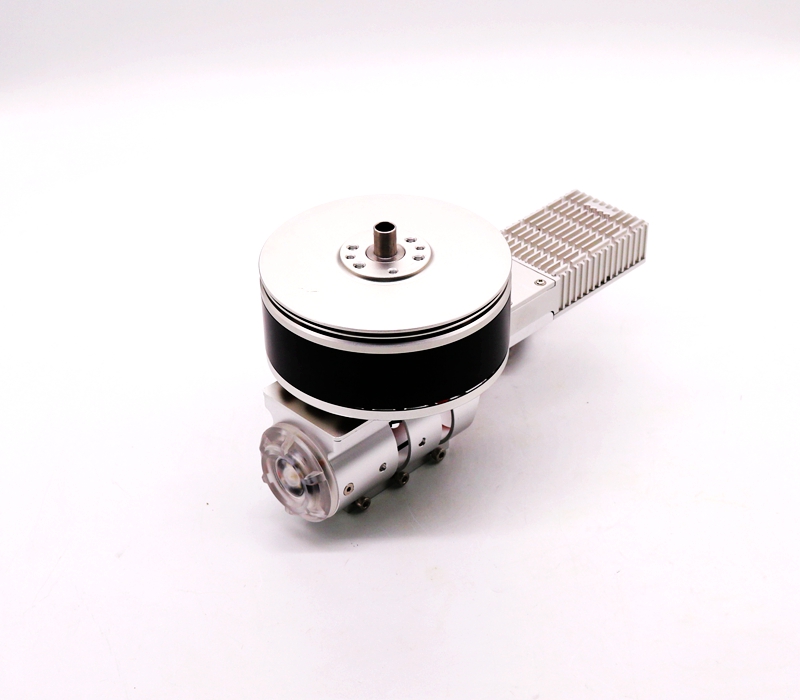

OUR PRODUCTS CENTER型号/Model:PM120

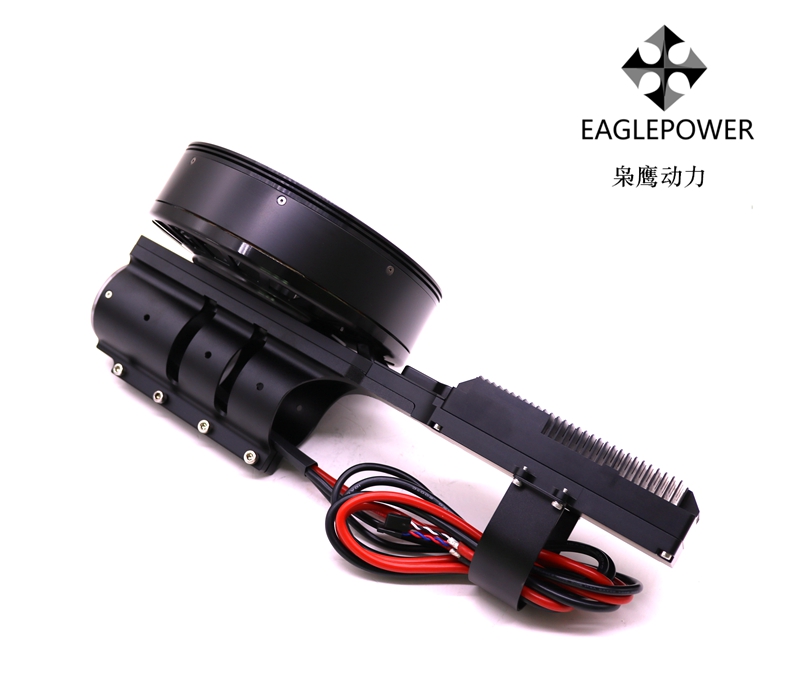

动力组(Power mix)
最大拉力/Max pull:
PM120-14S:32.2KG
PM120-12S:26.5KG
推荐多旋翼起飞重量(Recommended multi-rotor takeoff weight)
PM120-14S:15KG-17KG/轴
PM120-12S:13KG-14KG/轴
适用锂电池/Applicable lithium battery:12S-14S
动力组总重量/Power combination total weight:2298 g
电机座适用管径/Applicable pipe diameter of motor base:
Ø35mm/Ø40mm/Ø45mm
驱动方式/Drive way:FOC 正弦波
LED lights: Red Green
适用环境温度/Applicable ambient temperature:-20℃~65℃
电机/Motor
KV值:75 RPM/V
重量/weight:1320 g

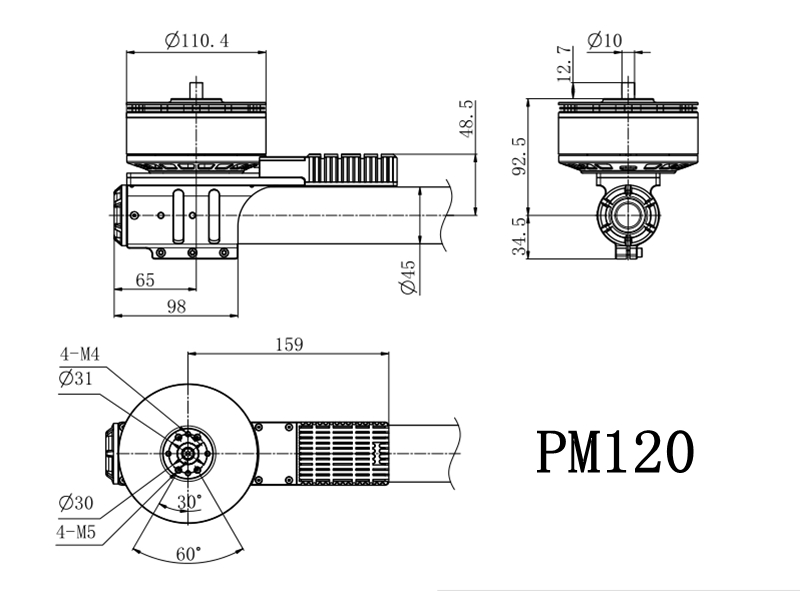

电机尺寸Motor size:Ø110.4*59 mm
主轴直径/Spindle diameter:Ø15 mm
输出轴直径-Output shaft diameter:Ø10 mm
定子安装孔尺寸/Stator mounting hole size:4-M4均布 Ø40
转子安装孔尺寸/Rotor mounting hole size:
1:4-M4 均布 Ø31
2:4-M5非均布 Ø31
电调/ESC
支持锂电池/Support lithium battery:12-14S
油门脉宽/Throttle pulse width:1050us-1940us
注:油门不支持校准/Throttle does not support calibration
兼容信号频率/Compatible signal frequency:50Hz-500Hz
BEC:No

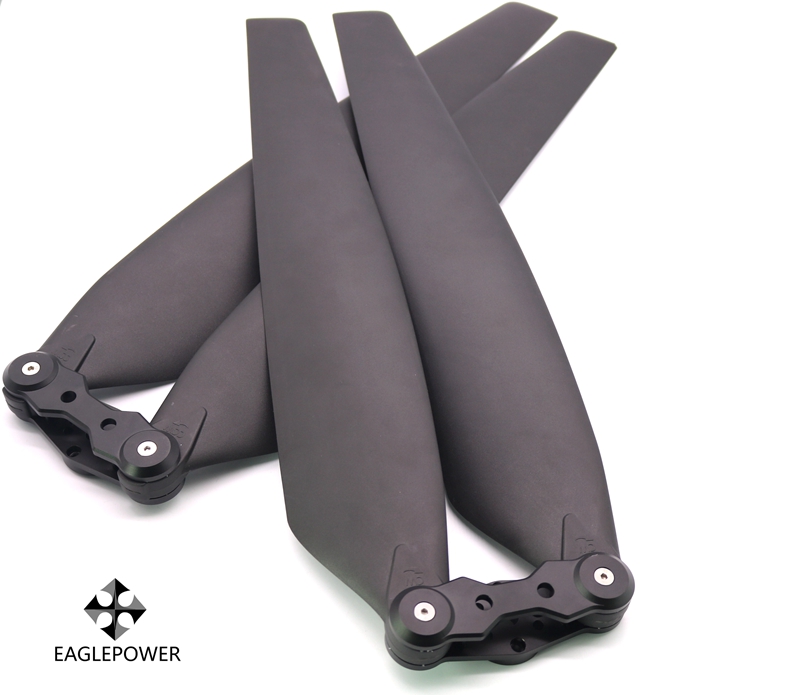

桨叶/propeller
型号/model:UP43135
结构/structure:折叠桨 Folding paddle
长度/length:1080 mm 42.5英寸 42.5 inches
螺距/Pitch:13.5
重量/weight:481 g
