OUR PRODUCTS CENTER适用锂电池:24S
Applicable lithium battery: 24S

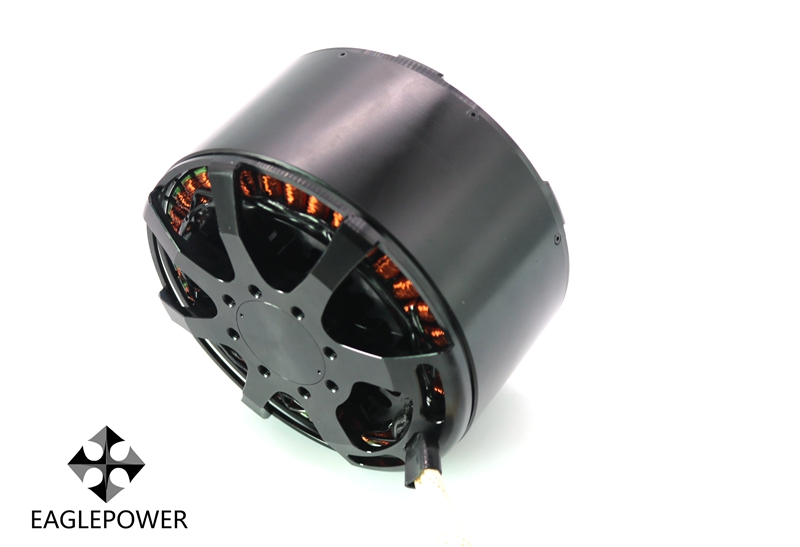

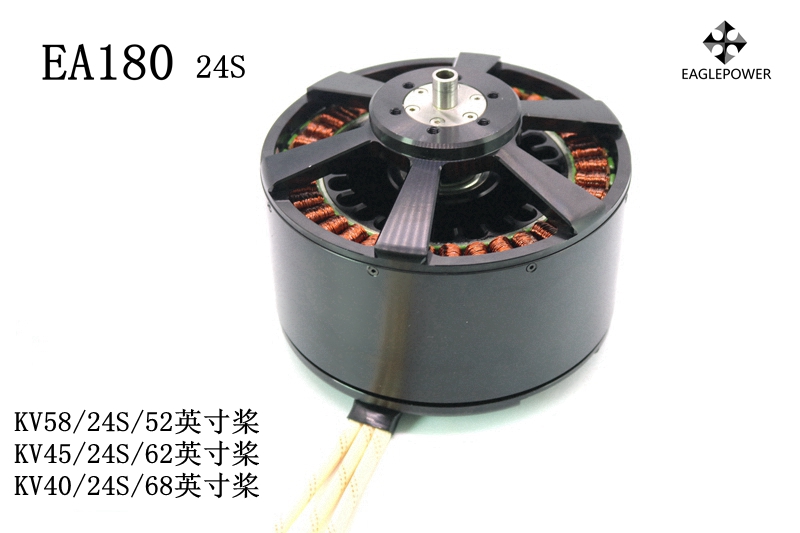

电机:EA180
重量:4.7KG
外形尺寸:Ø150*108 mm
电调ESC:EP-330A-HV
支持锂电池/Support lithium battery:18-24S
油门脉宽/Throttle pulse width:1050us-1940us
兼容信号频率/Compatible signal frequency:50Hz-500Hz
BEC:No
持续电流/Continuous current: :230A
峰值电流/Peak current: :330A
(备注:需保证散热通风条件良好,外壳温度在 80℃以下)
重量/weight:1133 g
尺寸/size:198*77.2*51 mm (长L*宽S*高H)
工作环境温度/Working temperature:-20℃~65℃
输入电源线/Input power cord: 7AWG L200mm
输出线三相/Three-phase output line:7AWG L200mm
线号线长度/Line number line length: 285 mm
螺旋桨:UF6298
重量:0.769KG
尺寸:L1575 mm
螺距:9.8
Motor: EA180
Weight: 4.7KG
Dimensions: Ø150*108 mm
电调ESC:EP-330A-HV
支持锂电池/Support lithium battery:18-24S
油门脉宽/Throttle pulse width:1050us-1940us
兼容信号频率/Compatible signal frequency:50Hz-500Hz
BEC:No
持续电流/Continuous current: :230A
峰值电流/Peak current: :330A
(备注:需保证散热通风条件良好,外壳温度在 80℃以下)
重量/weight:1133 g
尺寸/size:198*77.2*51 mm (长L*宽S*高H)
工作环境温度/Working temperature:-20℃~65℃
输入电源线/Input power cord: 7AWG L200mm
输出线三相/Three-phase output line:7AWG L200mm
线号线长度/Line number line length: 285 mm
螺旋桨:UF6298
重量:0.769KG
尺寸:L1575 mm
螺距:9.8
螺旋桨/propeller:UF5295
重量/weight:519g
长度/length:1320 mm
螺距Pitch:9.5
Propeller: UF6298
Weight: 0.669KG
Size: L1575 mm
Pitch: 9.8
Propeller: UF68115
Weight: 1.1KG
Size: L1715 mm
Pitch: 11.5
